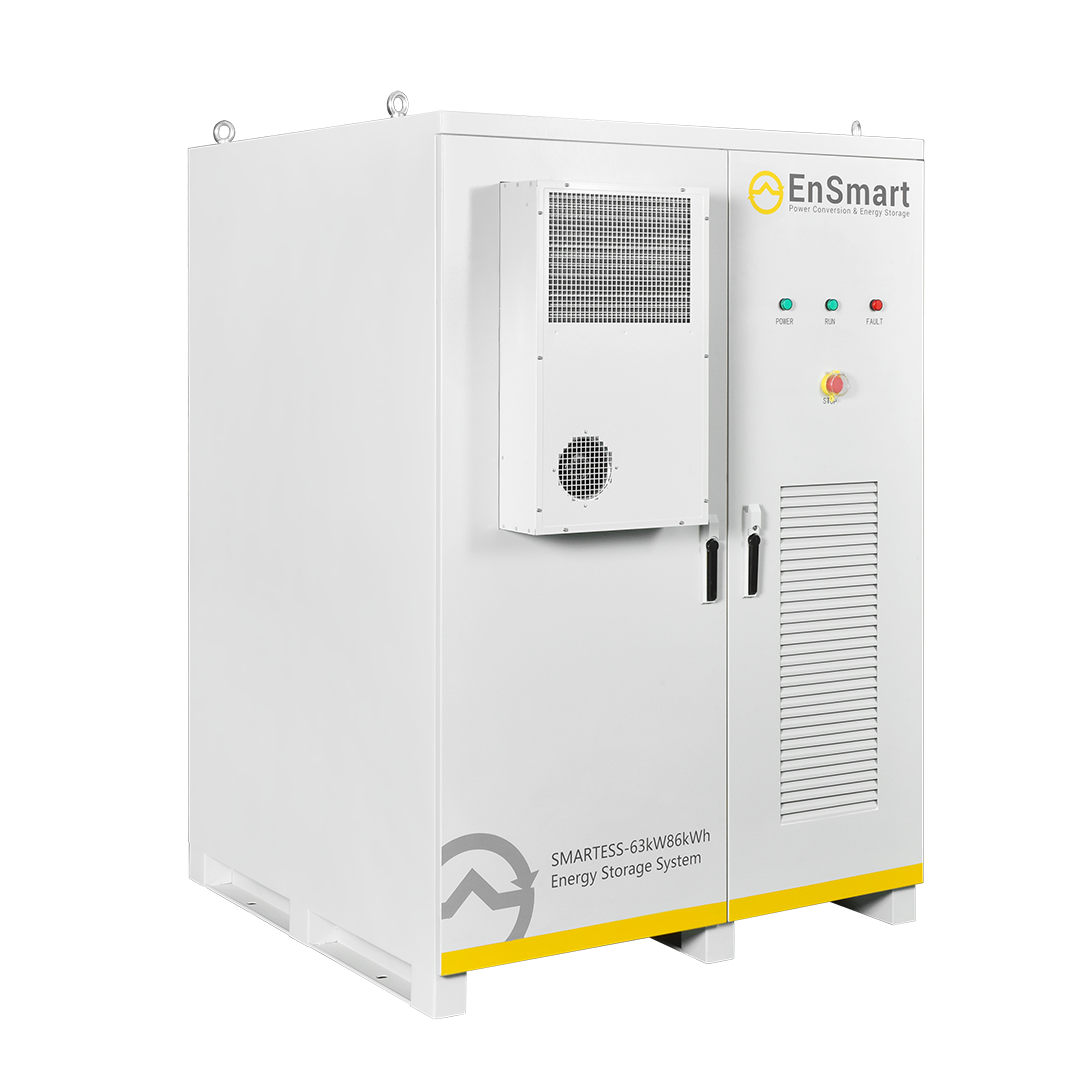

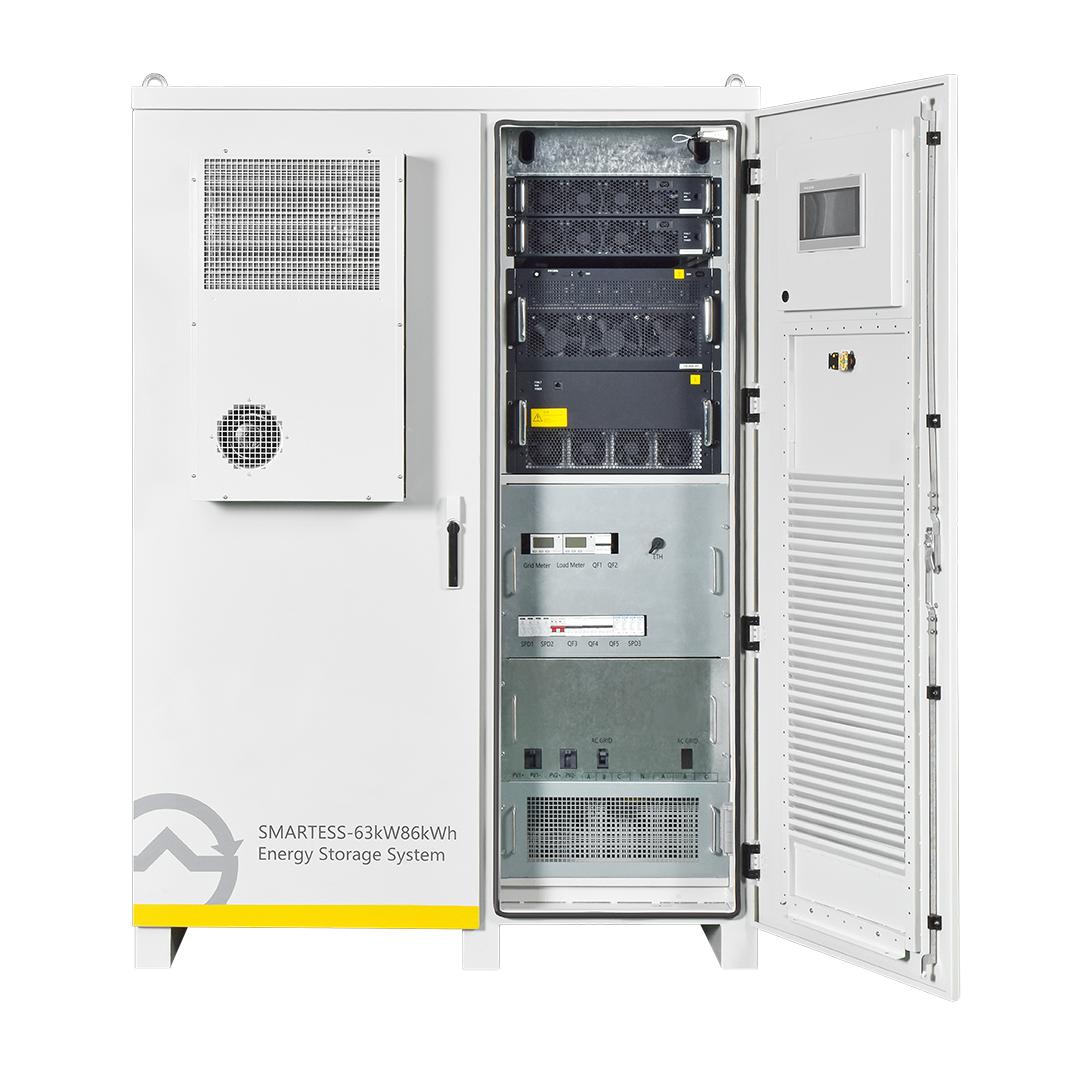

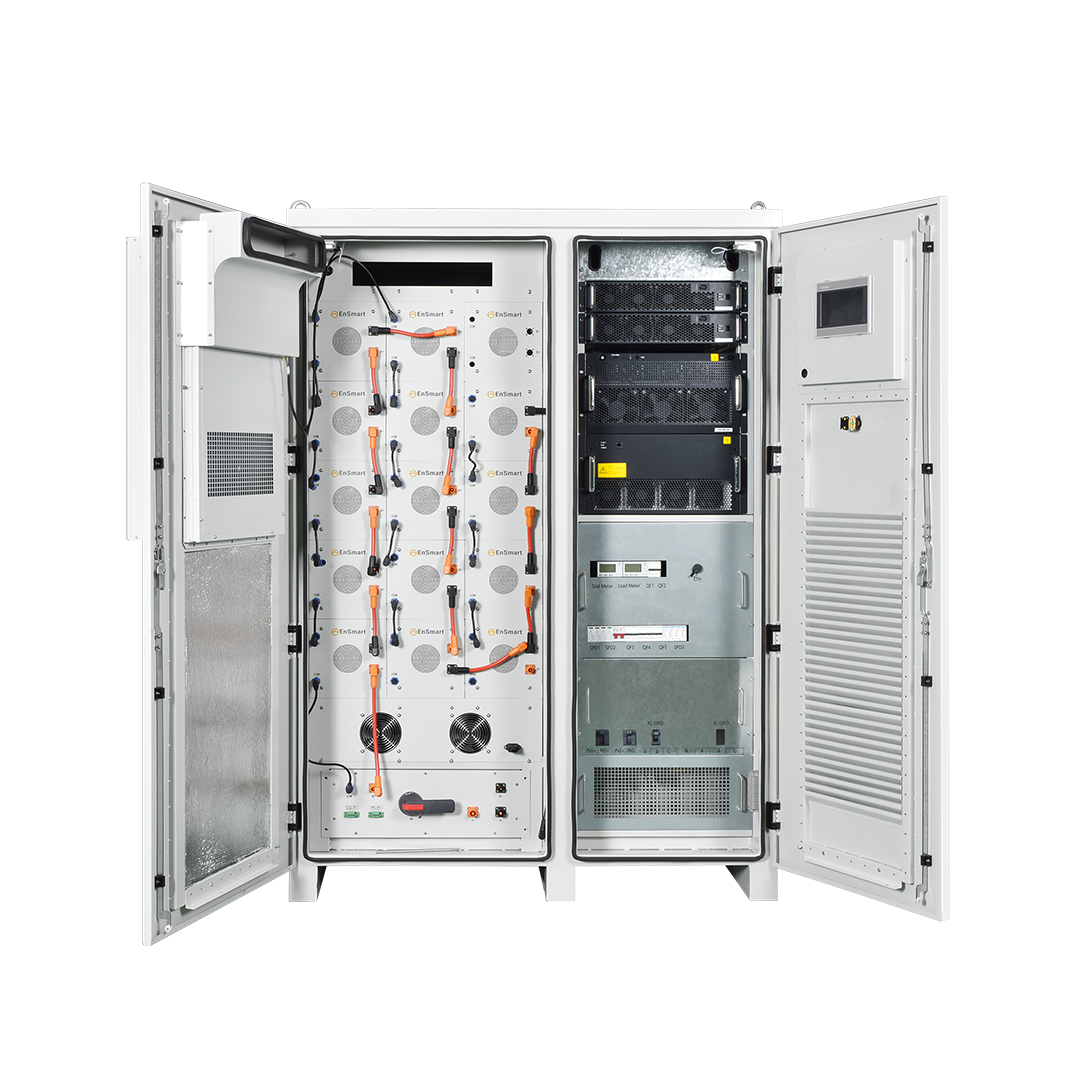

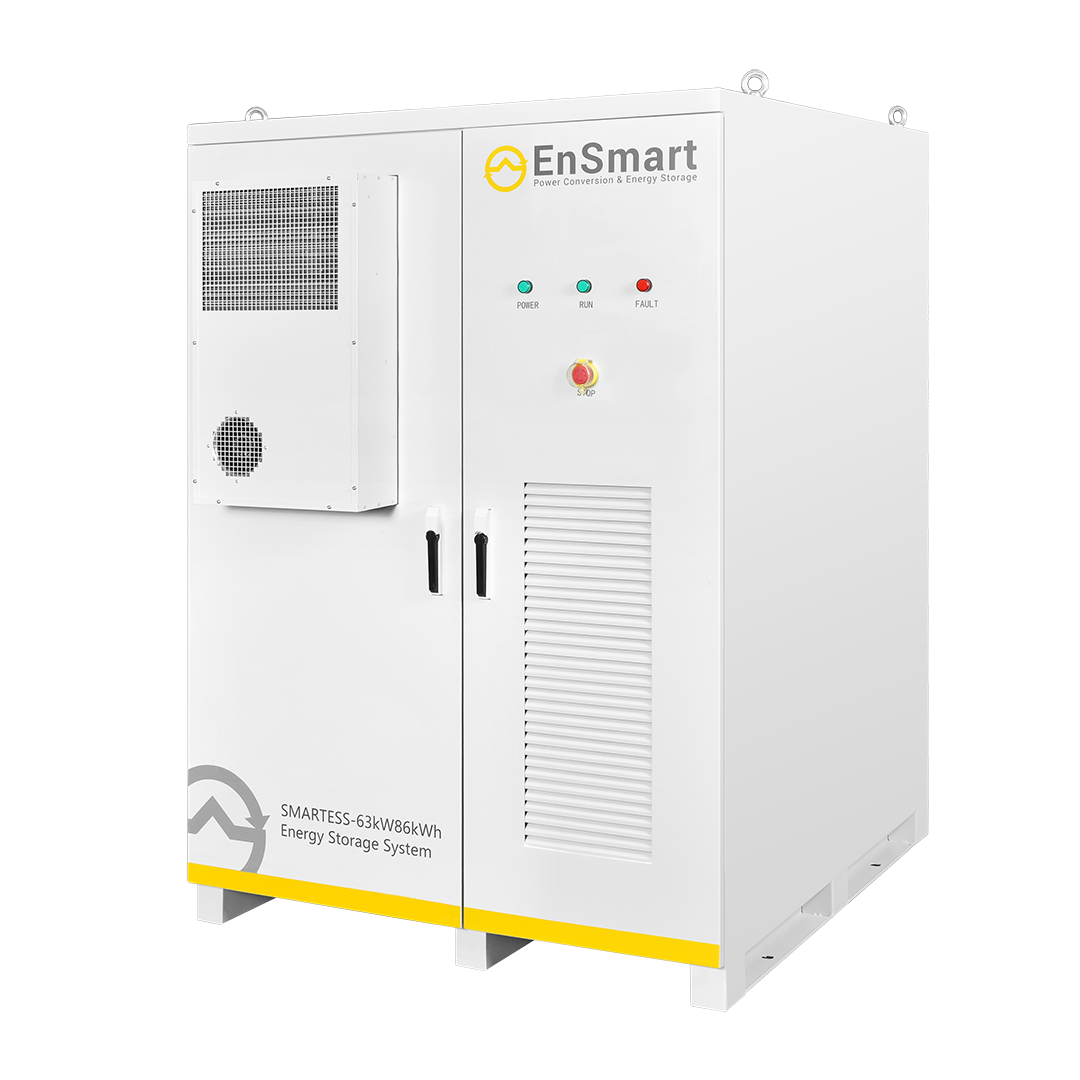

SmartESS 100

SmartESS 100
SmartESS 100

SmartESS 100

60kW/100kWh

Commercial Energy Storage System

EnSmart's Smart ESS 60/100 is an All-in-one compact ESS designed for small C&I loads. The system integrates Battery, BMS PCS, HVAC, fire extinguishing system and EMS systems. All components for battery storage, system operation and grid connection are pre-assembled for a plug and play use.It can meet the battery storage requirements up to 100kWh in one cabinet and can be parallelable for an expansion up to 1000kWh.
Suitable for various applications such as peak shaving, frequency regulation, EV Charging, Solar + Storage, Micro-Grid and self Consumption Optimization

 All-in-one ESS for small sized commercial loads
 Pre-engineered fully integrated
 Plug and play
 IP54 Outdoor with fire suppression and HVAC system
 Wide Battery DC Voltage Range
 Modular design for easy expansion up to 10 units
 Maximum safety with Tier 1 lithium battery cells
 Long lifespan with over 10000 cycles and 15 years design life

Request Offer Find Distributor

Applications


Wind Power Storage

Optical Storage

Villages Without Electricity

Off-Grid Island

Nomadic Farm

Off-Grid Mine

PV Station + ESS

Highlights



High Flexibility


Easy Installation


Smart Monitoring


Strong Load Adaptability

FEATURES

EnSmart' Power's Smart ESS 60/100 is an All-in-one , compact ESS designed for small C&I loads. The system integrates Battery, BMS PCS, HVAC, fire extinguishing system and EMS systems. All components for battery storage, system operation and grid connection is pre-assembled for a plug and play useIt can meet the battery storage requirements up to 100kWh in one cabinet and can be parallelable for an expansion up to 1000kWh.
Suitable for various applications such as peak shaving, frequency regulation, EV Charging, Solar + Storage, Micro-Grid, self Consumption Optimization

MODEL
Model SmartESS100
SYSTEM CABINET
Rated Output Power 63 kW
Battery Capacity of the ESS 99.84 kWh
Battery Configuration 15S1P
Dimensions (WxHxD) 1035 x 2050 x 1280 mm
Weight Including Battery Modules <1500 Kg
Operating Range / Storage Temperature -30°C to +55°C / -40°C to +60°C
Operating Humidity Range 0 - 100 %
Maximum Operating Altitude 4000m
IP Degree IP54, Outdoor
Communication Ports and Protocols CAN , Ethernet / CAN, Modbus TCP, IP
Cooling Method Industrial Air Conditionning
DC Lighting Protection Type II
BATTERY PACK
Cell Material LFP
Nominal Capacity 6.65 kWh
Nominal Voltage 51.2 V
Rated Capacity 130A
Maximum Charging/Discharging Current ≤ 1.0 C
POWER CONVERSION SYSTEM
Rated Output Voltage 230/400 V
Maximum PV Input 50 kWp
Maximum Current 101A
Rated Grid Frequency 50/60 Hz
Maximum Efficiency 99.00%
Protections AC Overcurrent Protection, AC Overvoltage Protection, AC Surge Protection, AC Short Circuit Protection, Antiisland Protection, DC Reverse Connection Protection, Straight Surge Protection
Compliances EN 62477, EN IEC 61000
Grid Support L/HVRT, Active and Reactive Power Control
Certified CE/CQC
Product Data Sheet
SmartESS 60 kW/100 kWh
 EN   RU   UA


Gallery  COMMERCIAL BATTERY STORAGE

ESS Applications

Explore the typical application areas of energy storage and find out how you can use Ensmart Power energy storage systems to reduce your electricity costs and be energy independent



Self-Consumption Optimization
Keep all solar and wind energy generated in order to distribute when needed so no energy is wasted.


Demand Response
Discharge and charge in response to signals from demand response programs.


Renewable Optimization Reduce Fuel Use
Can reduce reliance on diesel and similar fuels by optimizing renewables to be used for more hours.


Peak Shaving & Load Shifting
Shifts energy consumption from one place to another to minimize congestion during peak times.


EV Charging Optimization
Avoid expensive grid connection expansion using an ESS get protected against load peaks and overload.


Power Quality
Powers critical facilities if the grid happens to goes down.


Microgrid
Creates localized grid that can seamlessly disconnect and connect to the network.


Back-up Power
A Smart ESS onsite gives you the protection you need to ensure your operations are up, even if the network goes down. It will provide clean, dependable and uninterrupted power, which eliminates the need for multiple backup systems.
